Undercarriage Parts for Electric Rope Shovels

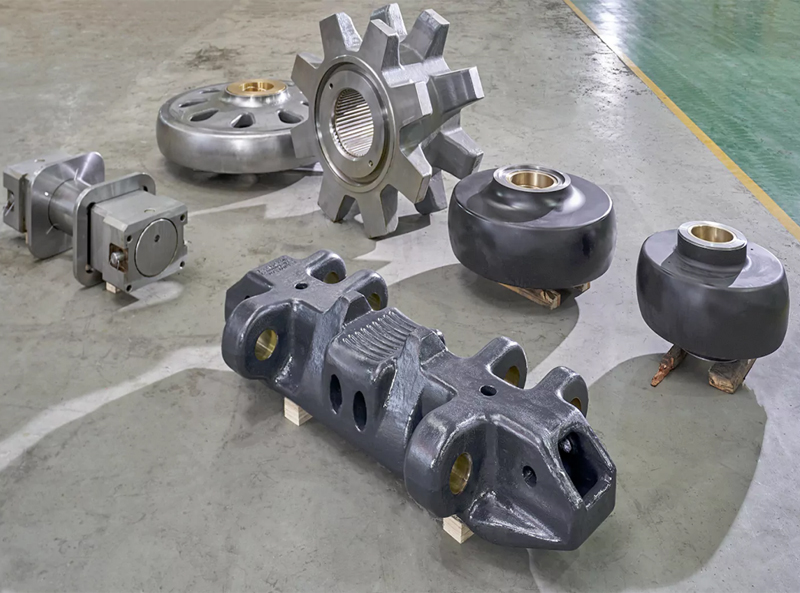

The undercarriage of electric rope shovels consists of critical components that ensure efficient operation and stability. Key parts include the front idler, track pad, drive tumbler, rear idler, and lower roller, each designed to withstand challenging conditions and enhance performance.

Electric Rope Shovels Description

1. Front Idler
   The front idler plays a vital role in guiding the track and maintaining proper tension. It bears the weight of the machine’s front section and is constructed from high-strength steel to resist wear and impact. Regular maintenance is essential to avoid excessive wear and ensure smooth operation.
2. Track Pad
   The track pad is the primary interface with the ground, providing necessary traction and stability. Made from durable materials with specialized tread designs, it effectively distributes the weight of the shovel while minimizing ground disturbance. Routine inspections and timely replacements are crucial for maintaining optimal functionality.
3. Drive Tumbler
   The drive tumbler is responsible for transferring power from the motor to the tracks, facilitating movement and maneuverability. It is built from robust, wear-resistant materials and must be regularly lubricated and checked for wear to ensure efficient operation and prevent power loss.
4. Rear Idler
   The rear idler is essential for maintaining track tension and supporting the rear section of the undercarriage. Constructed from sturdy materials, it contributes to the overall balance and stability of the machine. Regular inspections are necessary to identify any wear or damage that could impact performance.
5. Lower Roller
   The lower roller supports the track while aiding in weight distribution, ensuring smooth track movement and reducing wear on the track pads. Designed for high load-bearing capacity, it requires consistent inspection and lubrication to maintain its performance and longevity.
